Black Silicon High Heat Sleeve

Name: Black Silicon High Heat Sleeve
SKU: FUNK-SITB
Availability: InStock

Product Guide

Black Silicon High Heat Sleeve

From £21.00

Our highest temperature rated sleeve.
Simply slide over sensitive lines.
The ultimate heat sleeve.

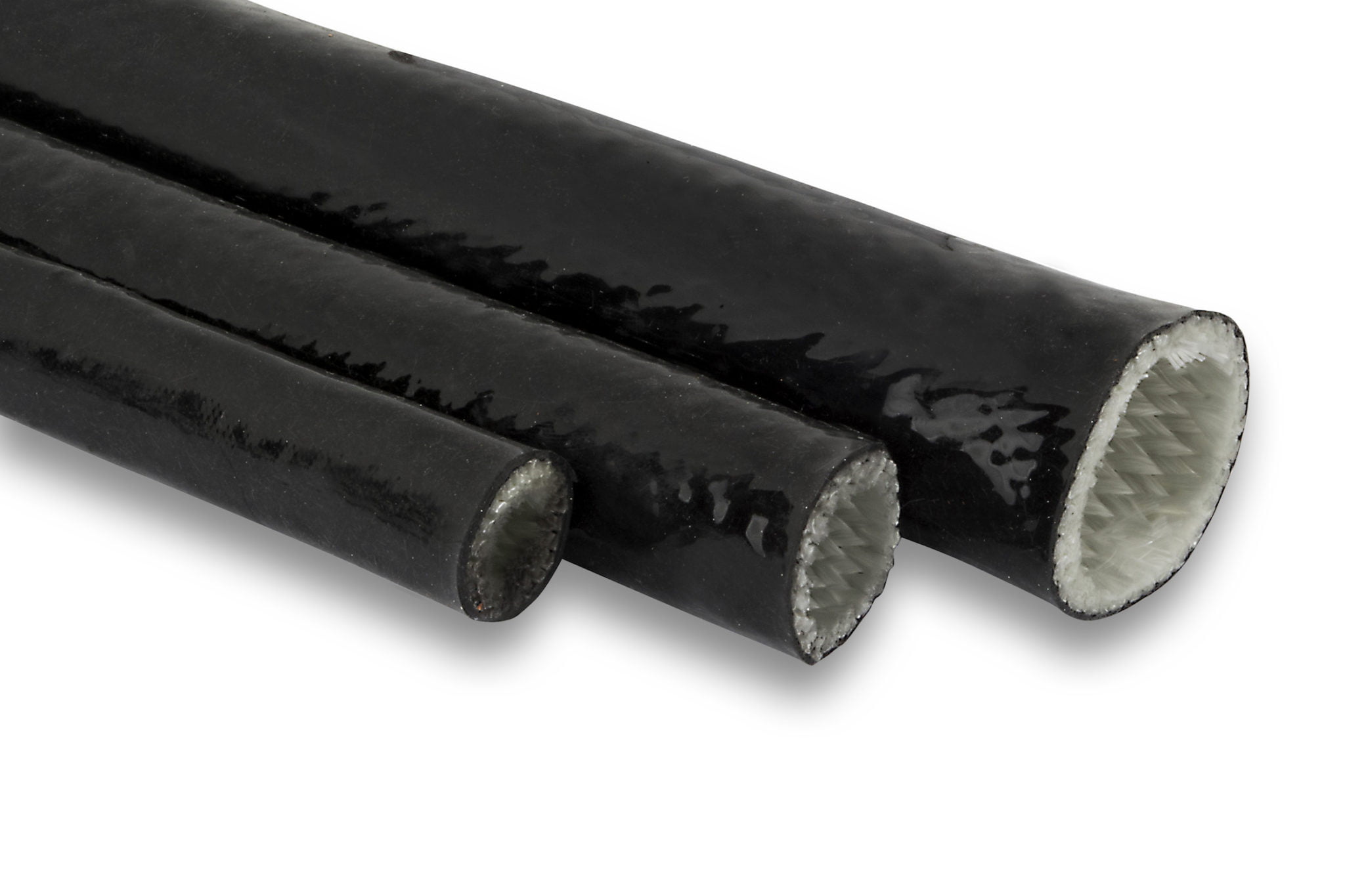

Meet our Funk Motorsport High Heat Silicon tube. Designed to work in temperatures of up to 1000 degrees C, simply slide and secure over sensitive lines and feeds for extreme heat protection.

Choose your Colour

Choose your Diameter

Choose your Length

Clear

SKU: FUNK-SITB

Ready to ship! Delivered to you from 1 working day

Product Guide

New to our high heat silicon sleeve? Let’s talk through some of the benefits and potential applications!

Available in a variety of diameters and lengths, our High Heat Silicon sleeve can be easily cut to size for any application. Protect sensitive lines running close to turbos, manifolds and more!

Protect important lines and feeds within your engine bay to ensure the consistent transfer of fluids to important components to ensure optimum performance over time.

Protect vital lines and feeds that are sensitive to heat with our high heat silicon tube. Protect fuel lines running close to a manifold or oil return lines positioned close to the hot side of the turbo to prevent failure or even worse – fire!

Although all may seem well initially, heat can gradually build up to a huge issue after time on track or on fast road applications. Battle brake fade and vapour lock by protecting crucial fluid lines on your vehicle to ensure optimum reliability over time.

Withstands continuous temperatures of up to 1000 degrees C, with intermittent flashes of up to 1650 degrees C. Please note: Our heat sleeving is not designed to be in contact with, or in very close proximity to a heat source (such as an exhaust or a turbo). Whilst the lines inside will be far better protected compared to without a sleeve, the sleeving will fail much easier - this is due to the sleeving being used beyond its designed parameters. As a first line of defence, we recommend moving the line as far away as possible from the heat source, this is the best level of protection available. Then shielding this further with one of our heat sleeves.

Have you chosen the correct blanket finish?

Remember: Although 95% of applications do not require an Inside Out blanket, if you have an exhaust clamp, exhaust pipe or similar heat source that will be in direct contact with the outside of the blanket once fitted, you should select the ‘inside out’ finish option.

Your product has been pre-configured based on your requirements.

FAQs

Do I need to remove the wire or line to fit a sleeve?

No. We offer both Velcro and sewn Heat Sleeving to give you options to fit without removing the line. Our Velcro Sleeving options are perfect for applications where the line cannot be removed.

⁠What temperature are the sleeves rated to?

The temperature range of our sleeves vary from 250°C, all the way up to continuous temperatures of 1000°C. We have a sleeving option to suit all requirements.

⁠I see you offer a variety of different sleeves, what are the differences between them?

The selection of sleeves that we have available offer a range of different heat protection qualities, as well as Velcro or sewn/tube heat sleeves to offer flexibility when the line or hose cannot be removed.

We offer three main types of Heat Sleeving here at Funk Motorsport.

Funk Motorsport Silver Heat Sleeving protects up to 250°C, while our Funk Motorsport High Heat Silicon Sleeving protects up to continuous temperatures of 1000°C. Looking for something in-between? Check out our Funk Motorsport Gold Sewn Heat Sleeving, offering protection for up to 450°C.

These are all available in a variety of diameters and lengths to suit your requirements. Simply choose a diameter and length and add to cart. Funk Motorsport Gold and Silver Reflective Heat Sleeving are also available in Velcro versions, to help for those applications where removal of the pipe isn’t possible

How do I know which size sleeve I need?

We simply need two measurements to find the correct size Heat Sleeving that you need – the diameter (this is the total width of the hose/line/cable that you are looking to protect), and the length of the area you are looking to protect.

Once you have these, select a diameter which is the same size, or slightly larger than the line you are trying to protect. All of the measurements on our website are in mm and refer to the internal diameter of our Heat Sleeves.

Still unsure on which Heat Sleeving product you need for your application? Get in contact, where we will be more than happy to find the correct Heat Sleeving for you.

What is Heat Sleeving used for?

Heat Sleeving is an essential product used to protect lines and hoses against direct heat and general heat within the engine bay. They can also be used to protect fuel lines, coolant hoses, or electronic cables from rubbing and chaffing on the outside. When it comes to the safety and reliability of your car, ensure your vital lines are protected with Funk Motorsport Heat Sleeving.
